Description

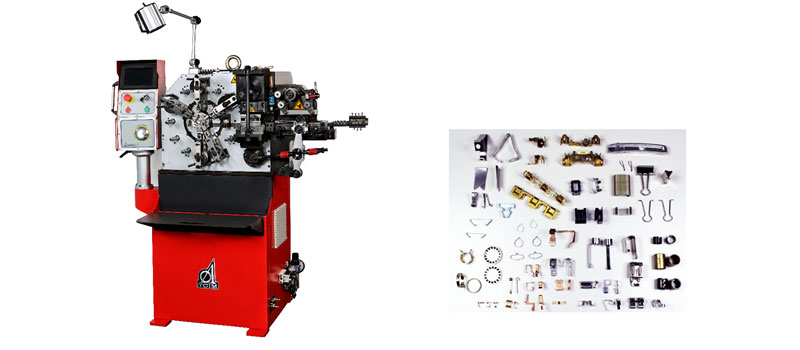

Model Number:-CNC-16T1
| Wire Diameter (mm) | 0.2 – 1.6 |
| Thickness of Strip (mm) | 0.1 – 0.9 |
| Width of Strip (mm) | 20 |
| Hardness of Wire (Carbon) | 80C |
| Axes | 1 |
| Max. Production Rate (pcs/min) | 200 pcs/min |
| Max. Feed Length (mm) | Unlimited |
| Press Capacity (ton) | 5 |
| Slide Capacity (ton) | 0.8 |
| Press Stroke (mm) | 10 |
| Slide Stroke (mm) | 25 |
| Standard Slide Quantity | 6 |
| Feeding (Gripper/Roller) | Grip feed |
| Dimension (mm) |
1520 x 800 x 1500
|
| Weight (kg) | 800 |
