Description

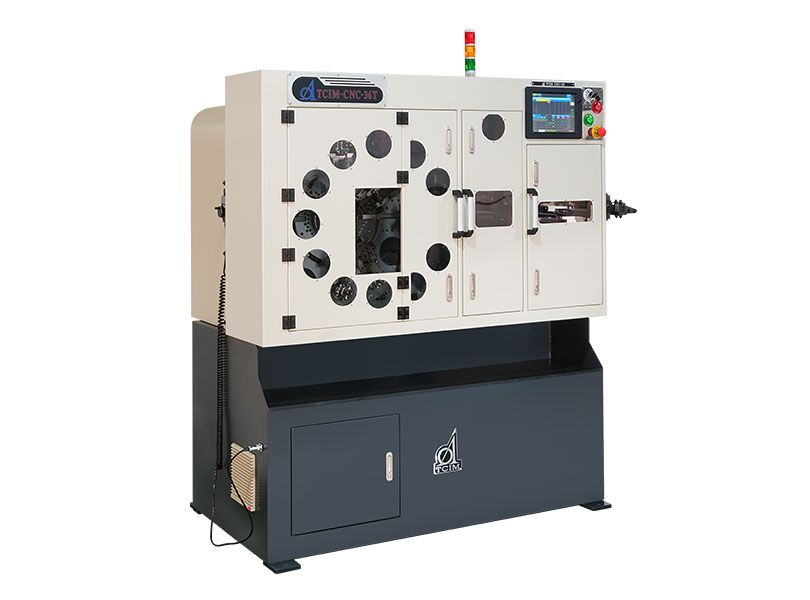

Model :- TCIM-36T1
| Wire Diameter | Ø0.6 – 3.0 mm |
| Thickness of Strip | 0.3 mm~1.5 mm |
| Width of Strip | 30 mm |
| Hardness of Wire | 80 carbon |
| Axes (2 or 3 axes available) | 1 |
| Max. Production Rate | 200 pcs/min |
| Max. Feed Length | Unlimited |
| Press Capacity | 10 ton |
| Slide Capacity | 1.8 ton |
| Press Stroke | 14 mm |
| Slide Stroke | 37 mm |
| Standard Slide Q’ty | 5 |
| Feeding | Grip feed |
| Dimension | 1850 x 900 x 1880 mm |
| Weight | 1350 kgs |
