Description

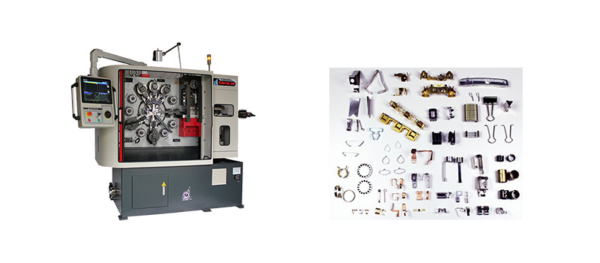

Model Number :- CNC-38T1
| Wire Diameter (mm) | Ø1.0 – 4.0 |
| Thickness of Strip (mm) | 0.3 – 1.5 |
| Width of Strip (mm) | 40 |
| Hardness of Wire (Carbon) | 80C |
| Axes | 1 |
| Max. Production Rate (pcs/min) | 150 pcs/min |
| Max. Feed Length (mm) | Unlimited |
| Press Capacity (ton) | 15 |
| Slide Capacity (ton) | 3 |
| Press Stroke (mm) | 14 |
| Slide Stroke (mm) | 43 |
| Standard Slide Quantity | 6 |
| Feeding (Gripper/Roller) | Grip feed |
| Dimension (mm) |
1920 x 900 x 1900
|
| Weight (kg) | 1900 |
