Description

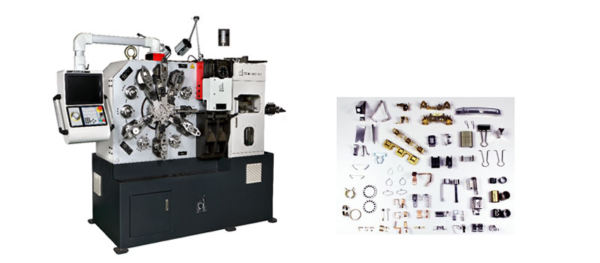

Model Number :- CNC-45T3
| Wire Diameter (mm) | Ø1.5-5.0 |
| Thickness of Strip (mm) | 0.3-2.0 |
| Width of Strip (mm) | 40, Max. 55 |
| Hardness of Wire (Carbon) | 80C |
| Axes | 3 (Cam, punch, feed) |
| Max. Production Rate (pcs/min) | 150 pcs/min |
| Max. Feed Length (mm) | Unlimited |
| Press Capacity (ton) | 25 |
| Slide Capacity (ton) | 6.5 |
| Press Stroke (mm) | 14 |
| Slide Stroke (mm) | Single cam 70 mm, double cam 65 mm |
| Standard Slide Q’ty | 6 |
| Feeding (gripper/roller) | Grip feed or Roller |
| Dimension (mm) | 2910 x 1290 x 2260 |
| Weight (kgs) | 2660 |
