Description

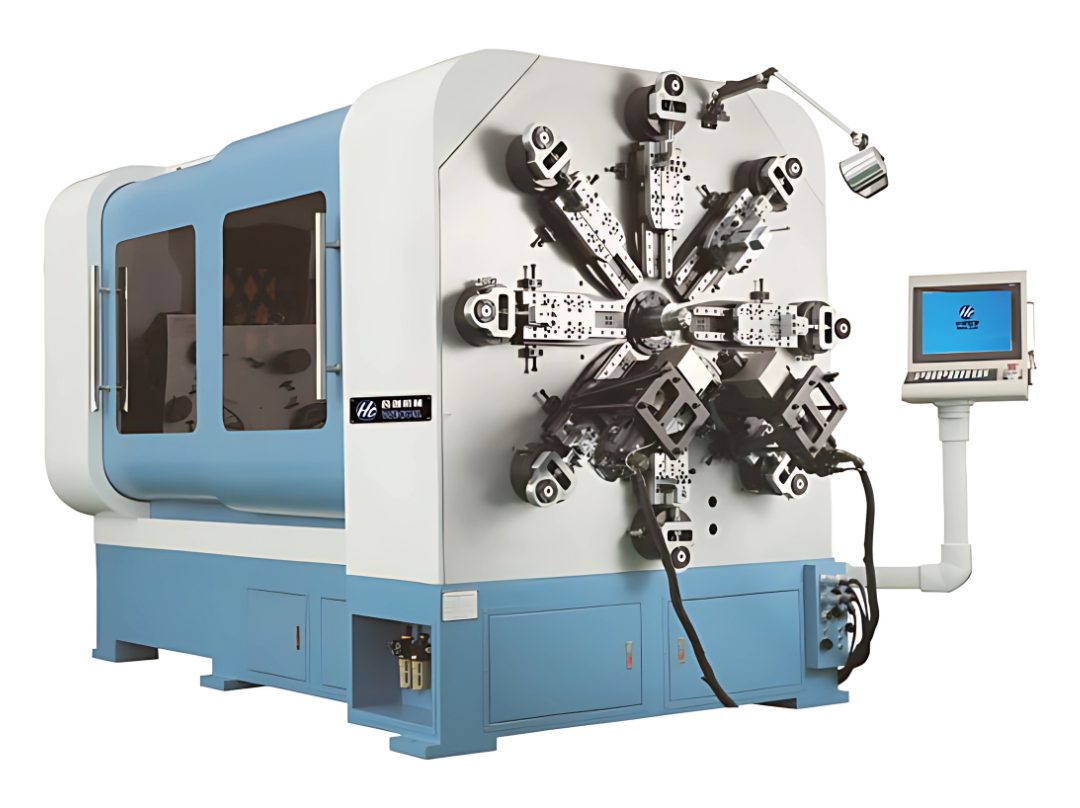

The CNC Spring Camless Machine HCT-1260WZ is designed to meet the demands of large-scale, intricate spring manufacturing with unparalleled accuracy. Featuring advanced cam-free and multi-axis technology, this machine can handle a wide range of wire sizes, allowing for the production of complex spring shapes in high volumes. The HCT-1260WZ enhances operational efficiency with quick setup capabilities and precise control, making it ideal for industries requiring both customization and reliability. Its robust design and performance make the HCT-1260WZ a top choice for manufacturers focused on quality and productivity.
| Number Of Axis | 12 axis |
| Wire Size Range | Φ2.0-6.0 mm |
| Max. Outside Diameter | Φ120 mm |
| Wire Feeding Speed | 105 m/min |
| Spring Index | 5 |
| Feeding Roller Pairs | 4 pairs |
| Quill Servo Motor | 1.8 kw |
| Feeding Servo Motor | 7.5 kw |
| Wire Rotation Servo Motor | 5.5 kw |
| Forming Servo Motor | 4.4 kw*8 |
| Spinner Servo Motor | 1.8 kw |
| Dimension (L x W x H) | 3800x2000x2200mm |
| Weight | 8000 kgs |
