Description

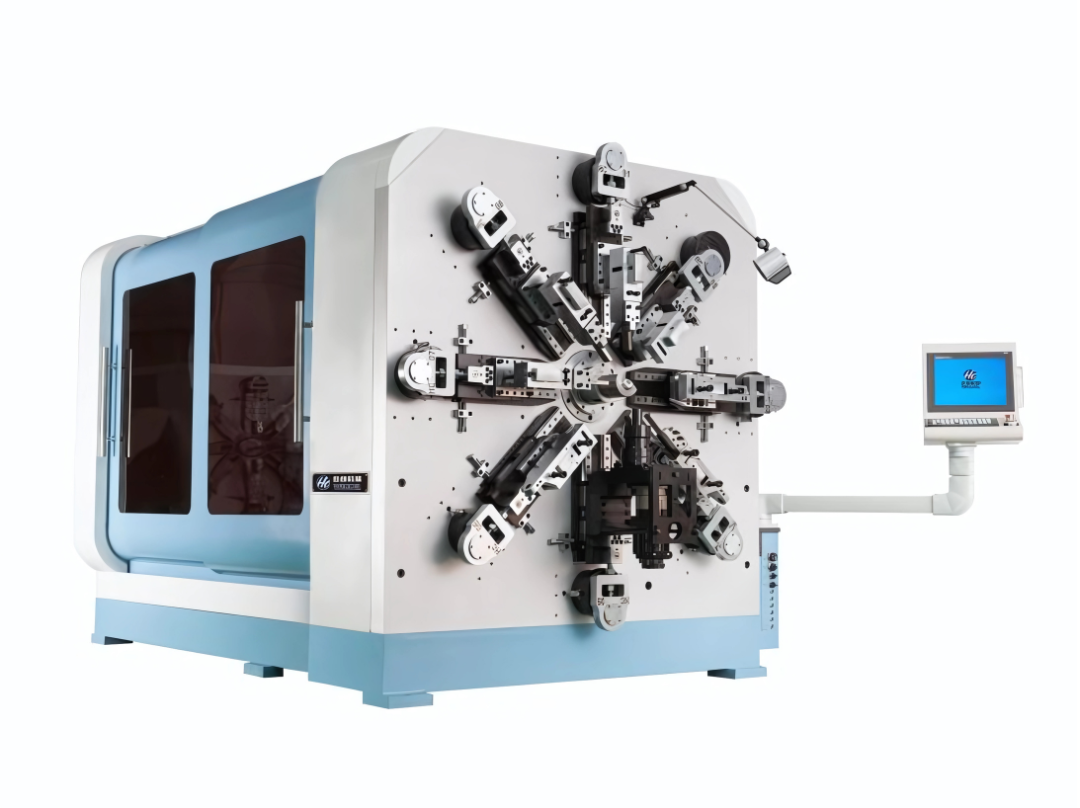

The CNC Spring Camless Machine HCT-1280WZ is a high-capacity solution crafted for the production of complex, large-diameter springs with exceptional precision. Equipped with advanced camless technology and multi-axis control, this machine allows for intricate shaping and high-speed production, ideal for applications requiring robust, custom spring designs. The HCT-1280WZ supports a wide range of wire sizes, providing manufacturers with flexibility and efficiency while maintaining consistent accuracy. Built for heavy-duty performance, this model is perfect for industries that demand both precision and scalability in their manufacturing processes.
| Number Of Axis | 12 axis |
| Wire Size Range | Φ3.0-8.0 mm |
| Max. Outside Diameter | Φ130 mm |
| Wire Feeding Speed | 100 m/min |
| Spring Index | 4 |
| Feeding Roller Pairs | 4-5 pairs |
| Quill Servo Motor | 1.8 kw |
| Feeding Servo Motor | 15.0 kw |
| Wire Rotation Servo Motor | 7.5 kw |
| Forming Servo Motor | 4.4 kw*8 |
| Spinner Servo Motor | 1.8 kw |
| Dimension (L x W x H) | 5000x2300x2800mm |
| Weight | 10000 kgs |
