Description

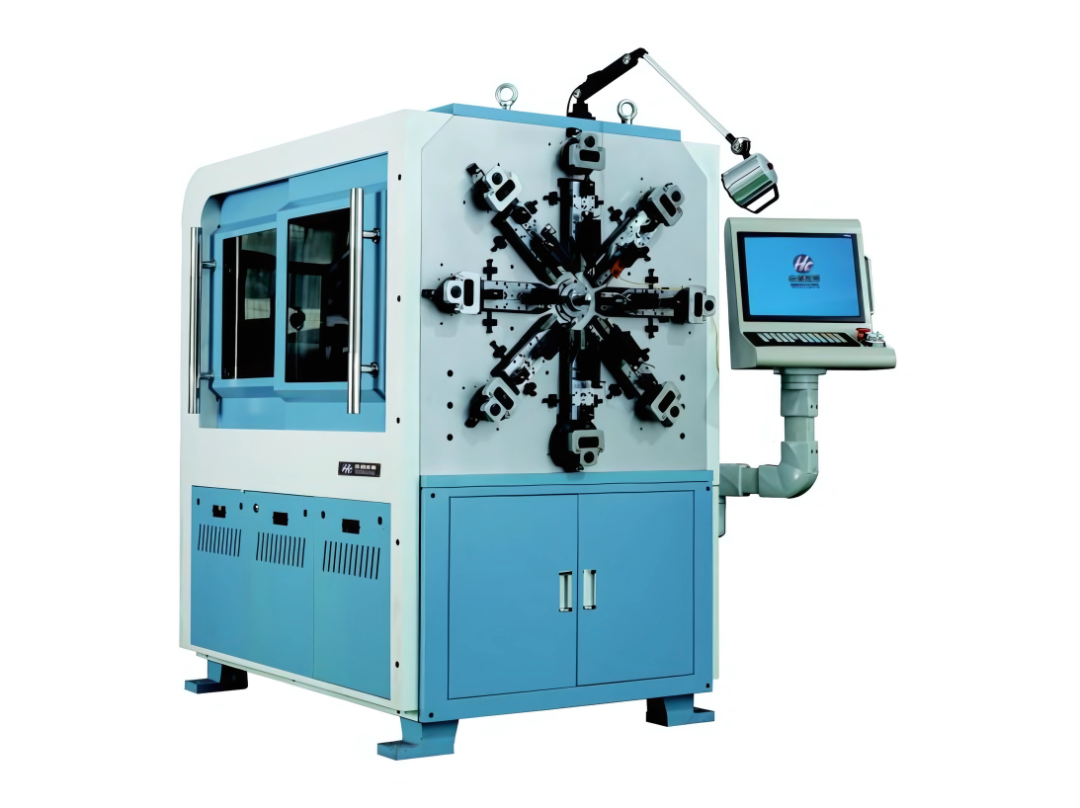

The CNC Spring Camless Machine HCT-NM1225X is engineered for precision and versatility, featuring a powerful camless design tailored for complex spring shapes. With advanced CNC control and multi-axis capabilities, the HCT-NM1225X offers exceptional flexibility for crafting springs with unique specifications and intricate geometries. This machine enhances productivity by allowing quick setup changes and reducing production time, making it a perfect solution for industries requiring high-quality, custom spring solutions. Its robust performance and user-friendly interface make the HCT-NM1225X a valuable asset for any high-precision manufacturing environment.
| Number Of Axis | 12 axis |
| Wire Size Range | Φ0.3-2.5 mm |
| Wire Feeding Speed | 100 m/min |
| Feeding Roller Pairs | 2 pairs |
| Quill Servo Motor | 0.75 kw |
| Feeding Servo Motor | 2.9 kw ( Yaskawa ) or 2.7 kw ( Sanyo ) |
| Wire Rotation Servo Motor | 2.9 kw ( Yaskawa ) or 2.7 kw ( Sanyo ) |
| Forming Servo Motor | 0.85 kw*8 (Yaskawa) or 1.2 kw*8 (Sanyo) |
| Spinner Servo Motor | 0.4 kw |
| Dimension (L x W x H) | 1600x1120x1750 mm |
| Weight | 1500 kgs |
