Description

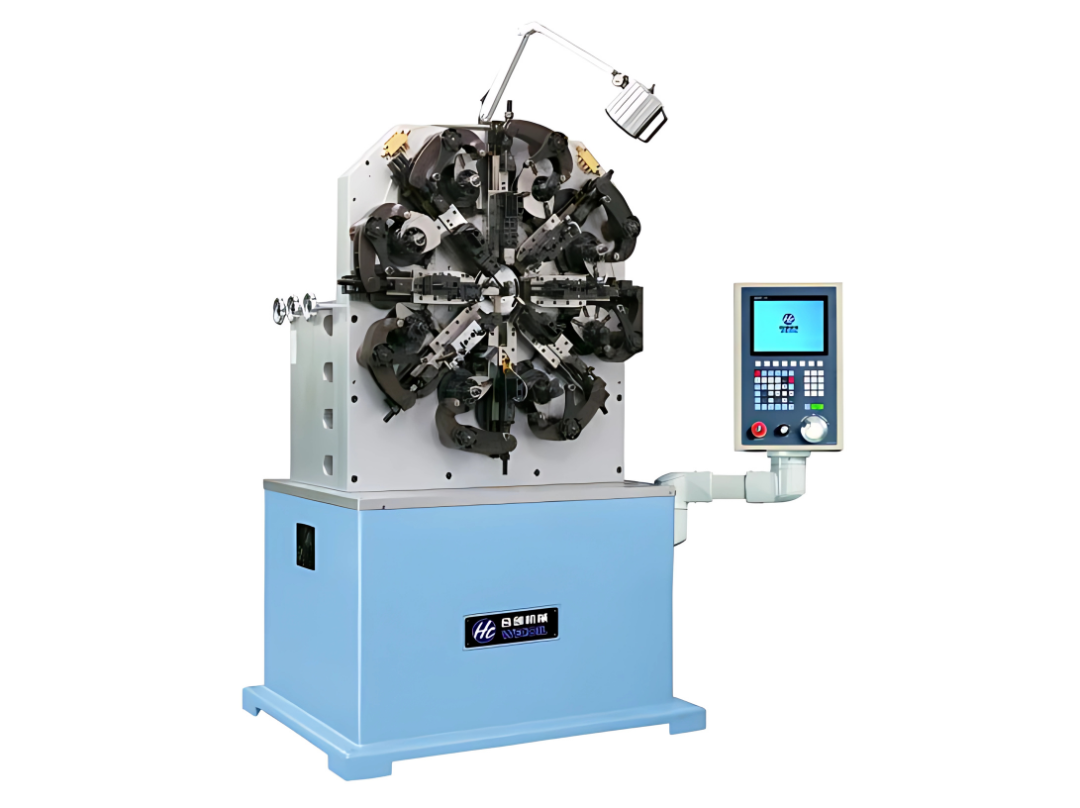

The CNC Spring Forming Machine HCT-35W is engineered for high-performance spring production, offering exceptional flexibility and precision in creating a variety of spring shapes. With its advanced CNC technology, this machine allows for quick adjustments, making it ideal for both small batch and mass production. The HCT-35W is capable of handling various wire diameters, ensuring versatility across multiple applications. Its robust design and intuitive interface enhance operational efficiency, enabling manufacturers to achieve consistent quality and meet diverse production requirements effectively.
| Number Of Axis | 3-4 axis |
| Wire Size Range | Φ1.2-4.0 mm |
| Max. Outside Diameter | Φ80 mm |
| Max. Feeding Length | Unlimited |
| Wire Feeding Speed | 110 m/min |
| Feeding Servo Motor | 5.5 kw |
| Cam Servo Motor | 4.5 kw |
| Quill Servo Motor | 1.0 kw |
| Spinner Servo Motor | 1.0 kw |
| Dimension (L x W x H) | 1000x1300x1900 mm |
| Weight | 2000 kgs |
