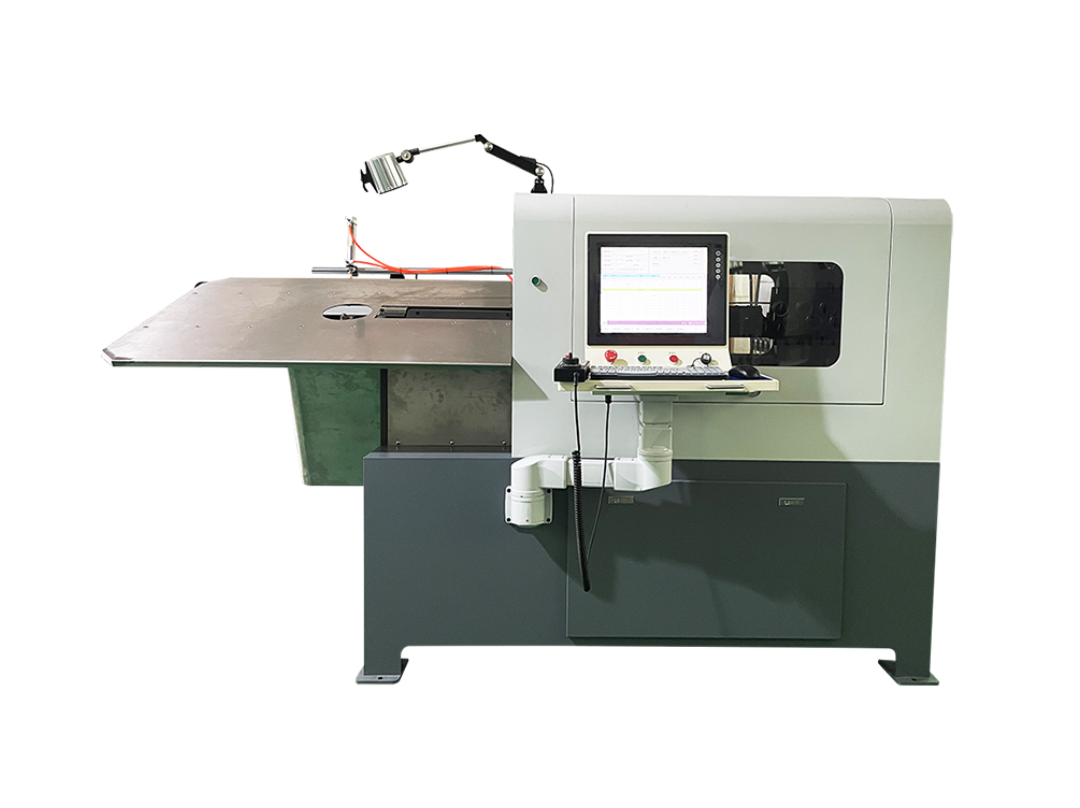

US-2D408

The US-2D408 Wire Bending Machine is engineered for precision and versatility in wire fabrication, offering advanced capabilities to produce complex bends and shapes with ease. This machine features a robust design that supports a wide range of wire diameters, making it suitable for various industrial applications. With its intuitive CNC controls, the US-2D408 allows for quick programming and adjustments, ensuring efficient production and high-quality output. Its reliable performance and durability make it an excellent choice for manufacturers looking to enhance their wire bending processes, whether for small batches or large production runs.

Description

Products Description

1. The machine adopts imported motor and reducer, and the production speed is more than 20% higher than that of domestic counterparts and similar products. Bearing, gear and other important parts imported from Taiwan, the equipment is durable and reliable.

2. The computer interface can adjust the speed and process while production. Production efficiency and output are displayed on the computer interface, the equipment can automatically stop after reaching the specified output.

3. High precision, can be used for wire forming products within the range of 3.0-10.0mm wire diameter, with the error reduced to 0.1mm.Production can be achieved at the slowest bending angle and angle without any change, production stability is better.

4. The wire that the machine can bend includes: iron wire, stainless steel wire, non-ferrous metal wire and special materials (including round wire, square wire, flat wire, etc.), can be bent into a variety of plane irregular shape and a variety of plane buckle, hook, etc.

Technical parameter
Model US-2D408
Wire Diameter Ø4.0~Ø8.0MM
Axis 4
Wire Feed Wheel Sets 3Sets
Wire Feeding Axis 2.9KW
External Torsion Axis 1.3KW
Cutter Axis 1.0KW
Platform Lifting Axis 1.0KW
Dimension (LxWxH) 3400*1300*1750(mm)
Weight (kg) 1500kg

The specifications and features are subject to change without notice.
